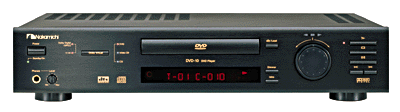

DVD-10s
HOME VIDEO DVD PLAYER		 For
Purchase
On-Line




SPECIFICATIONS

  Discs played
  DVD Video Disc: 12 cm single-sided, single layer
    12 cm single-sided, double layer
    12 cm double-sided, single layer
    12 cm double-sided, double layer (one layer per side)
    8 cm single-sided, single layer
    8 cm single-sided, double layer
    8 cm double-sided, single layer
    8 cm double-sided, double layer (one layer per side)
  Compact Disc
  (CD-DA, Video CD): 12 cm, 8 cm
  Video System: PAL (625/50, 525/60) / NTSC (525/60, 625/50)
  Video Output
  Line Output Level: 1.0 Vp-p/75 ohms, unbalanced
Pin Jack x 2
  S-Video Output Level: Y output: 1.0p-p/75 ohms unbalanced

C output: 0.3 Vp-p/75 ohms (PAL) 0.286Vp-p/75 ohms (NTSC)
    4 pin mini DIN x 1
  Component Output Level: Y output: 1.0 Vp-p/75 ohms, unbalanced
    CR output: 0.7 Vp-p/75 ohms, unbalanced


CB output: 0.7 Vp-p/75 ohms, unbalanced

    Pin Jack x 1 system
  Audio System: MPEG 1/2 audio
    Linear PCM audio
    Dolby Digital (AC-3)
    DTS (Digital output only)
  Audio Output: 2.0 Vms/ 10 k ohms
Pin Jack x 1 system
  Dolby Digital 5.1 Channel Output: Pin Jack x 1 system
  Digital Audio Output: Optical connector
  DVD Linear Audio Characteristics
  Frequency Response: 4Hz-22kHz (Fs=48kHz)
    4Hz-44kHz (Fs=96kHz)
  Signal-to-Noise Ratio: 100 dB (Fs=48kHz, 24-bit PCM)
  Dynamic Range: 100 dB (Fs=48kHz, 24-bit PCM)
  Total Harmonic Distortion: 0.0025% (Fs=48kHz, 24-bit PCM)
  CD Audio Characteristics
  Frequency Response: 4Hz-20kHz
  Signal-to-Noise Ratio: 100 dB
  Dynamic Range: 100 dB
  Total Harmonic Distortion: 0.003%
  Pickup: Wavelength: 655nm
  Laser power: CLASS 2
  Power Requirements: 100-240 V AC 50/60 Hz (According to country of sale)
  Power Consumptiom: 19 W max.
  Dimensions: 430 (W) x 88 (H) x 310 (D) mm,
16-15/16 (W) x 3-7/16 (H) x 12-3/16 (D) inches
  Approximate Weight: 3.4 kg, 7 lbs. 8 oz.

  * Specifications and features subject to change without notice.
* Dimensions do not include protruding parts. Height is the panel height.
* "Dolby", "Pro-Logic" and "Dolby Digital" are trademarks of Dolby Laboratories Licensing Corporation.
* Manufactured under license from Dolby Laboratories Licensing Corporation.
* "DTS" and "DTS Digital Surround" are trademarks of Digital Theater System inc.
* Manufactured under license from Digital Theater Systems Inc.
